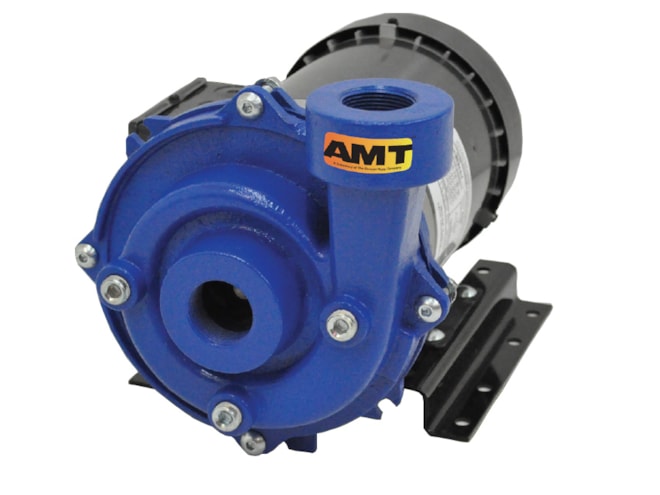

AMT Chemical Series Centrifugal Pump

Cast iron, solids handling, chemical centrifugal pump series with a maximum pressure of 125 PSI.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $476.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Cast iron construction
  • EPDM/EPR mechanical seals and O-rings
  • Discharge ports rotate in 45° increments
  • Solids handling - clog resistant impeller
  • 125 PSI maximum working pressure
  • 180 GPM maximum flow
  • 95ft maximum head at 41 PSI
  • 3/4in to 2in NPT Sizes
  • 1/2 to 3 HP Dual Cycle 50/60 Hz TEFC 56J NEMA Single or Three Phase Motors

The AMT chemical series of centrifugal pumps are designed for solids handling with the clog resistant impeller. They are suitable for use in continuous-duty OEM, industrial/commercial and general service application such as circulation, chemical processing, liquid transfer, and cooling. The pull-from-rear design allows for service without disturbing any piping. The impellers are self-cleaning and can handle solids up to 3/8in diameter, depending on model (see datasheet for more details). Pumps are close coupled to a TEFC motor, which come in options from 0.5 to 3.0 HP and single or three phase. Pumps are not self-priming and require a flooded suction.
