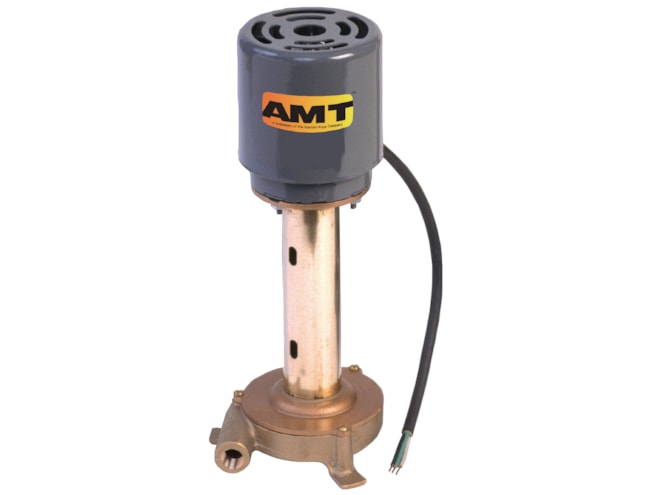

AMT 4200 Series Bronze Coolant Recirculating Pump

Cast bronze constructed coolant recirculating pump with a maximum flow of 8 GPM and 1/25 HP motor.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $302.60
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Cast bronze construction
  • No bottom bearing
  • Brass column and impeller shaft
  • Bronze seld-cleaning open impeller
  • 3/8in NPT discharge port
  • 200°F maximum temperature
  • 8 GPM maximum flow
  • 10ft maximum head
  • 1/25 HP TEFC motor
  • 115V or 230V voltage options available

The AMT 4200 Series is a bronze coolant/recirculating pump series that has been designed for a variety of industrial/commercial coolant, cleaning solutions, and recirculating applications. The absence of a bottom bearing makes the unit ideal for handling erosive liquids and fine contaminants. A 36 inch 3-conductor power cord is included. The pump contains a fiber gasket and a bronze self-cleaning open impeller. Please note that the motor of this pump is not intended to be submerged in liquid. The liquid level should always be at least 2in below the motor bottom (maximum liquid depth is 6in).

ISNY Abrasive Cyclone Separator
ISNY Abrasive Cyclone Separator

Uses rotational effects and gravity rather than filters to remove particulates from fluids.

$500.00

This product can be used in the following applications:

Manufacturer Stock

Components in stock, please allow 2-3 business days for processing.

Part Number Price Available
4230-97
Show Configuration
$299.88 1 in stock
4231-97
Show Configuration
$302.60 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
