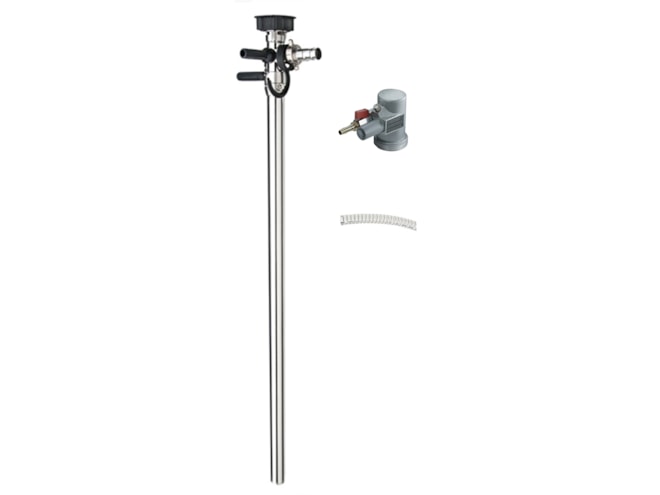

Flux Pumps F425PP Polypropylene 39-inch Pump Tube with F416-2 Electric Motor and Hose

A liquid saver, polypropylene 39-inch immersion depth container pump with a progressive cavity pump motor and 6ft hose.

$2,538.60
Part Number
  • 24-PUWO0174
Highlights...

Features

  • F425PP
    • Maximum flow rate: 31 GPM
    • Maximum delivery head: 85ft
    • Maximum temperature: 212°F
    • Viscosity: <1 to 1200 cPs
    • Pump materials: polypropylene
    • 39in immersion depth
    • O-ring material: FKM
  • F416-2 Ex Container Pump Air Motor:
    • 470 watt power at 86psi operating pressure
    • 86psi max operating pressure
    • 17 CFM max air consumption
    • Adjustable tip valve and ball valve included
    • ATEX Ex II G IIC T6
  • 6ft PVC hose

The Flux Pumps F425 series is a liquid saver pump series with grease-lubricated shaft bearing and a mechanically sealed, steel cored inner tube. It has the ability to pump out 99.98% of a 55 gallon drum leaving less than 1% residual. No tilting is necessary to totally empty the drum and there is no loss of medium when taking the pump from drum to drum. There are two switch levers to open and close the foot valve. Operation against a closed valve is possible until the indicated maximum operating temperature.

The Flux Pumps F416-2 is an Ex container pump air motor. It is lightweight and user friendly, while capable of operating at varying speeds by adjustment of the input air operating pressure and volume. This is done by the use of the included ball valve. The F416-2 model specifically comes without trigger and with the ball valve. The F416-2 contains external ventilation and meets the standards for ATEX Ex II G IIC T6.
