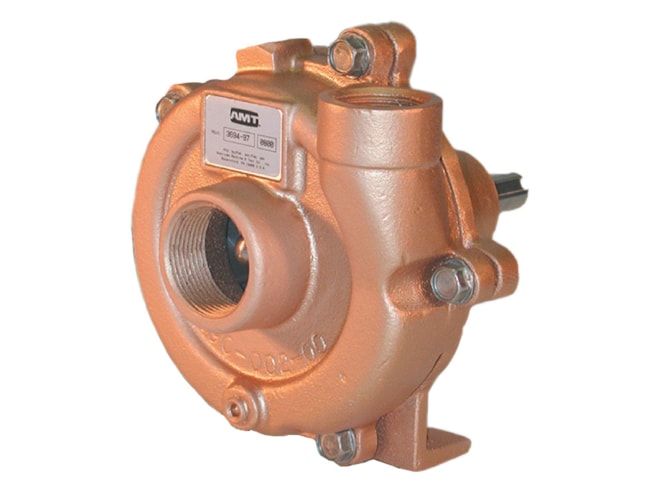

AMT Straight Centrifugal Pedestal Pump

Solids handling centrifugal pump series with a maximum RPM of 400 and low pressure options available.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $295.12
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Cast stainless steel, stainless steel fitted cast iron, and bronze constructions available
  • Mechanical seal options
    • Stainless steel: Viton
    • Bronze: Viton
    • Cast iron: Buna-N
  • Maximum temperature
    • Viton: 200°F
    • Buna-N: 180°F
  • 3/4in to 1 1/4in NPT suction port sizes
  • 1/2in to 1in NPT discharge port sizes
  • Maximum 4000 RPM
  • Low pressure application options available

The AMT straight centrifugal pedestal pumps are designed for continuous duty OEM, industrial/commercials, and processing applications. It is suitable for uses including circulation, chemical processing, liquid transfer, heating, and cooling operations. The high head models are ideal for sprinkler systems and pressure boosting. The pumps are designed to handle liquids with solids content or dissolved solids and debris up to 7% of liquids volume. These units are available in a variety of construction and seal materials. The pull-from-rear design allows for servicing without disturbing any piping. Additionally, these pumps feature CNC machines shafts with sealed ball bearings.

AMT Pedestal Pump Adapter
AMT Pedestal Pump Adapter

Keyed or threaded shaft options.

Starting at $254.00
ISNY Abrasive Cyclone Separator
ISNY Abrasive Cyclone Separator

Uses rotational effects and gravity rather than filters to remove particulates from fluids.

$500.00

Manufacturer Stock

Components in stock, please allow 2-3 business days for processing.

Part Number Price Available
3682-95
Show Configuration
$295.12 1 in stock
3694-98
Show Configuration
$527.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
