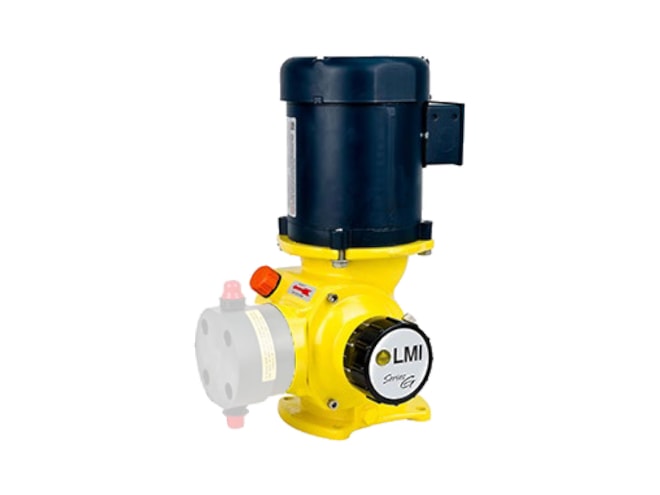

LMI Pumps Series G SD Pump Drive Assembly

Replacement drive end for Series G SD Metering Pumps, manual control with max output up to 127 GPH/ 75psi.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $2,670.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Replacement drive unit for Series G SD Metering Pump (drive end only)
  • Manual controls for precise stroke length adjustment
  • Designed to withstand corrosive environments
  • High-efficiency motor minimizes heat buildup
    • TEFC (not with -X motor configuration)
  • Max output ranges: 0.7 to 127 GPH / 175 to 75 PSI (respectively)
  • NEMA 56C motor
  • Motor requirements:
    • 1/4 HP or 0.18 KW for 3-phase
    • 1/3 HP or 0.25 KW for 1-phase
  • SPM: 43 to 173 @ 60 Hz / 36 to 144 Hz @ 50 Hz

The LMI Pumps Series G SD Pump Drive Assembly is a replacement drive end for the Series G SD Metering Pump, with max output ranges up to 127 GPH (481 LPH) / 75 PSI (5 Bar). Control configuration includes a straightforward Manual model for precise stroke length adjustment, and is built into a durable housing design that protects against corrosive environments. SPM ranges are offered from 43 to 173 SPM @ 60 Hz ranges, with phase-1 and -3 TEFC motors with NEMA 56C rating. This unit includes the drive end only.

Part Number Price Available
SD81X-DR
Show Configuration
$2,724.00 3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2 to 3 weeks". Click here to select options
