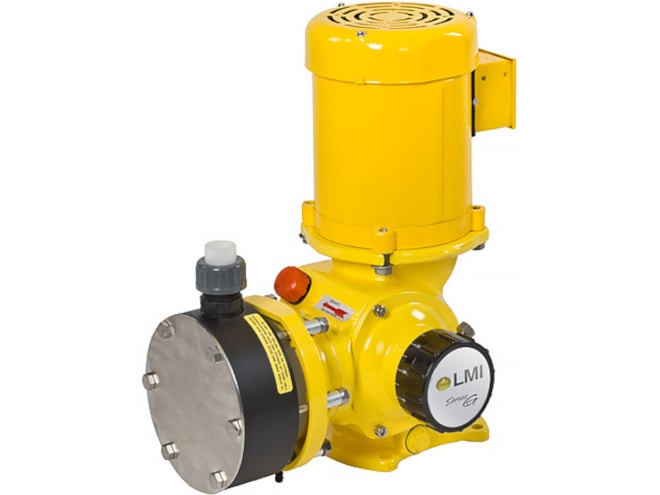

LMI Pumps Series G SD Metering Pump

Rugged aluminum pump with variable speed drive for 75 to 175psi pressure ranges in high-output applications.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $3,436.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • 115gph (435lph) maximum flow rate
  • 75 to 175psi (5.2 to 12.1bar) max pressure
  • 10:1 turndown ratio with smooth velocity profiles
  • Designed to withstand corrosive environments
  • PTFE high-performance diaphragm design
  • High-efficiency motor minimizes heat buildup
  • Manual controls for precise stroke length adjustment
  • NSF/ANSI 61 and 372 certified
  • UL, CUL, ETL certified

The Series G SD Metering Pump features rugged aluminum construction that is specifically engineered to handle higher output applications in harsh environments. The series G pump features external speed control, stainless steel fasteners, and NSF certifications which make it an ideal solution for water treatment applications such as coagulation and flocculation.

By combining a heavy-duty industrial drive with state-of-the-art design, the Series G offers a mechanically actuated diaphragm that provides smooth output with reduced potential for system shock and hydraulic oil contamination.

Applications include:

  • Water Treatment
  • Waste Water Treatment
  • Industrial Processing
  • General Industry
  • Agricultural
  • Chemical Processing
LMI Pumps Series G SD Pump Drive Assembly
LMI Pumps Series G SD Pump Drive Assembly

Replacement drive end for Series G SD Metering Pumps, manual control with max output up to 127 GPH/ 75psi.

Some Models in Stock
Starting at $2,670.00
LMI Pumps Series G SD Liquid End Assembly
LMI Pumps Series G SD Liquid End Assembly

Replacement liquid end for Series G SD Metering Pumps. Special material configurations available for polymer, slurry and H2SO4 applications.

Some Models in Stock
Starting at $1,812.00
LMI Pumps Series G SD Liquid End RPM Kit
LMI Pumps Series G SD Liquid End RPM Kit

Repair and maintenance kit for Series G SD Chemical Metering Pumps.

Some Models in Stock
Starting at $1,392.00

This product can be used in the following applications:

Part Number Price Available
SD72-X-8P
Show Configuration
$4,138.00 3 in stock
SD73-8-8P
Show Configuration
$4,478.00 3 in stock
SD46-X-8P
Show Configuration
$3,436.00 2 in stock
SD73-X-8P
Show Configuration
$4,138.00 2 in stock
SD42-J-8T
Show Configuration
$3,776.00 1 in stock
SD43-X-8P
Show Configuration
$3,436.00 1 in stock
SD73-P-7P
Show Configuration
$9,291.00 1 in stock
SD73-X-7P
Show Configuration
$6,582.00 1 in stock
SD76-X-8P
Show Configuration
$4,138.00 1 in stock
SD83-X-8P
Show Configuration
$4,820.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2 to 3 weeks". Click here to select options
