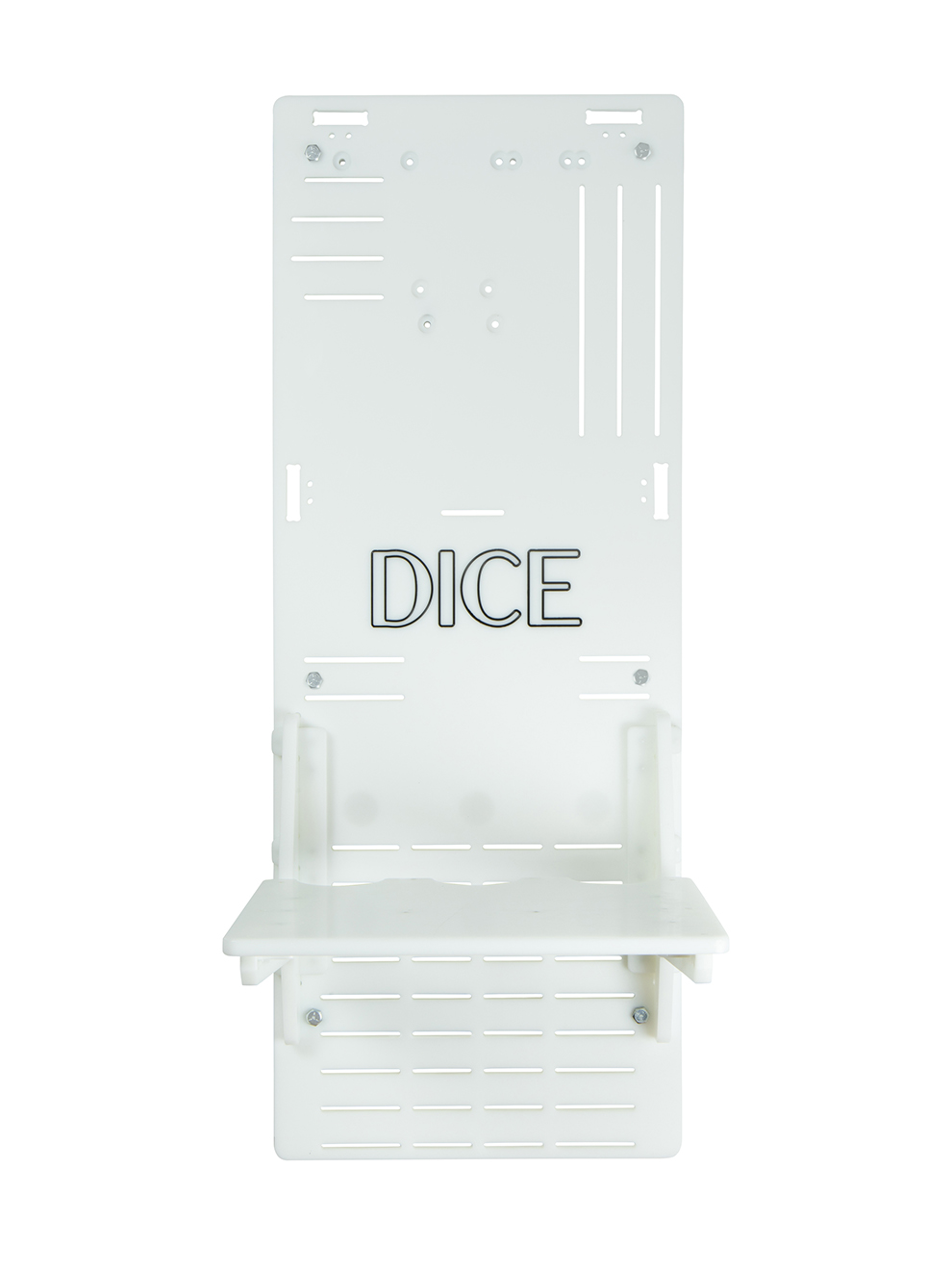

Meunier Technologies DICE Wall Mount Panel

Wall mount panel for integration of DICE dosing systems with pumps.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $507.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Housing kit for DICE Dosing Modules DS/DM 1/2in sizes
  • Material:
    • Panel: HDPE
    • Optional shelf/enclosure: HDPE
    • Fasteners: stainless steel
  • Dimensions:

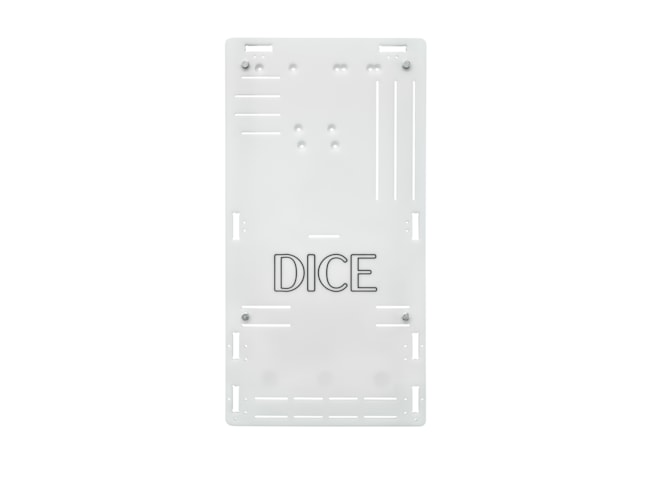

    • Solo wall panel: 15in W x 29in H
    • Wall panel with shelf: 15in W x 38.5in H x 15.5in D
    • Wall panel with enclosure: 15in W x 38.5in H x 17.1in D
  • Color: white
  • Panel with enclosure configuration includes:
    • 3/8in OD tubing
    • 1/2in OD tubing
    • 1/2in Sch80 PVC rigid piping
    • 1/2in MNPT drain connector
    • LMI Ferrule Fit kit (1 included)
  • Packaged in a 29in x 17in x 3in cardboard box
    • Parts of this kit are shipped loose, for assembly at facility or on site

The Meunier Technologies DICE Wall Mount Panel is a user-friendly system that allows for quick assembly without specialized tools, easily integrating essential components like DICE DS and DM modules and pumps. Its compact design and flat-pack shipping make it an efficient and cost-effective choice for various chemical dosing setups.
