Meunier Technologies DICE Dosing All-In-One System

Chemical dosing kit including DICE Dosing Module with suction lift/flooded suction, Wall Mount Panel with optional shelf and enclosure. Available with Grundfos pumps.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $4,929.59
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Meunier Technologies DICE Dosing All-In-One System Brochure Meunier Technologies DICE Dosing Module DM/DS Brochure
Highlights...

Features

  • DICE Dosing Module DM 1/2in features:
    • FAT tested
    • Suction lift & flooded suction
    • Block/Wetted/Seal Material(s):
      • Acrylic, PVC, Viton or EPDM
      • PVDF, PVDF, Viton or EPDM
      • Tubing/piping (w/o suction manifold): PE or PFA, 6ft equipped to the module drain
      • Additional materials available upon request
    • Flow:
      • ≤ 60LPH (16GPH) Simplex
      • ≤ 30LPH (8GPH) Duplex
    • Pressure range: 0-150psi
      • Integrated components:
        • Inlet/outlet ball valves
        • Calibration column
        • Drainage valve
        • Auxiliary ports:
          • Pulsation dampeners/dilution water/washing port/secondary pumps
        • Adjustable back pressure & pressure relief valve
        • Pressure gauge with isolator
        • Bleed valve
  • Simplex/Duplex configurations available with Grundfos pumps
  • Optional suction manifold

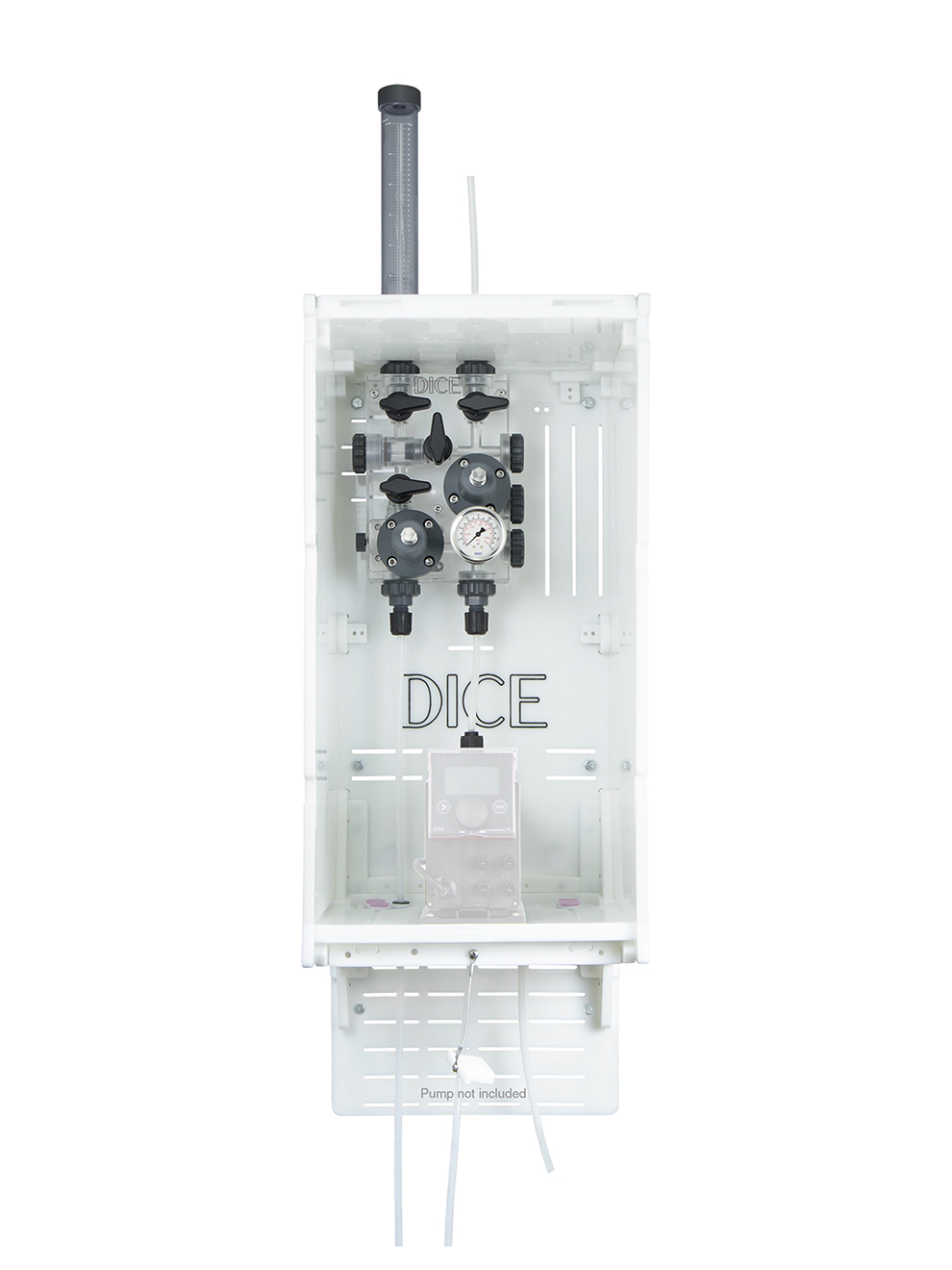

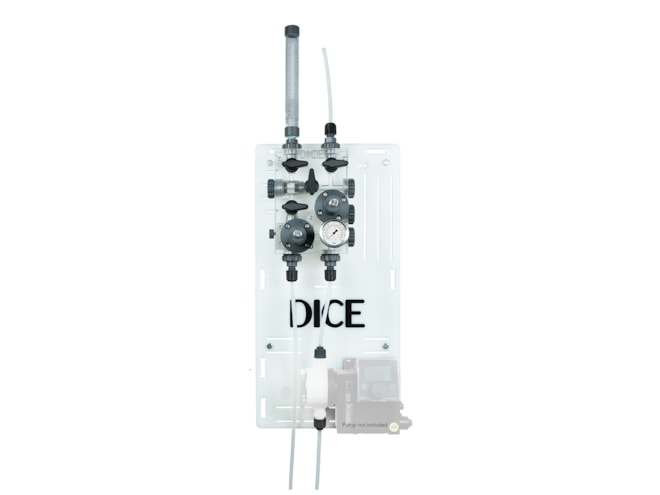

  • DICE Wall Mount Panel with optional shelf and enclosure
  • Packaged in a 16x16x48in cardboard box

The Meunier Technologies DICE Dosing All-In-One System is part of a series of innovative chemical dosing products that integrate all the necessary components for a typical chemical dosing system into a single compact design. These patented systems are a new approach to chemical dosing applications, significantly reducing the footprint required while increasing reliability and ease of installation.

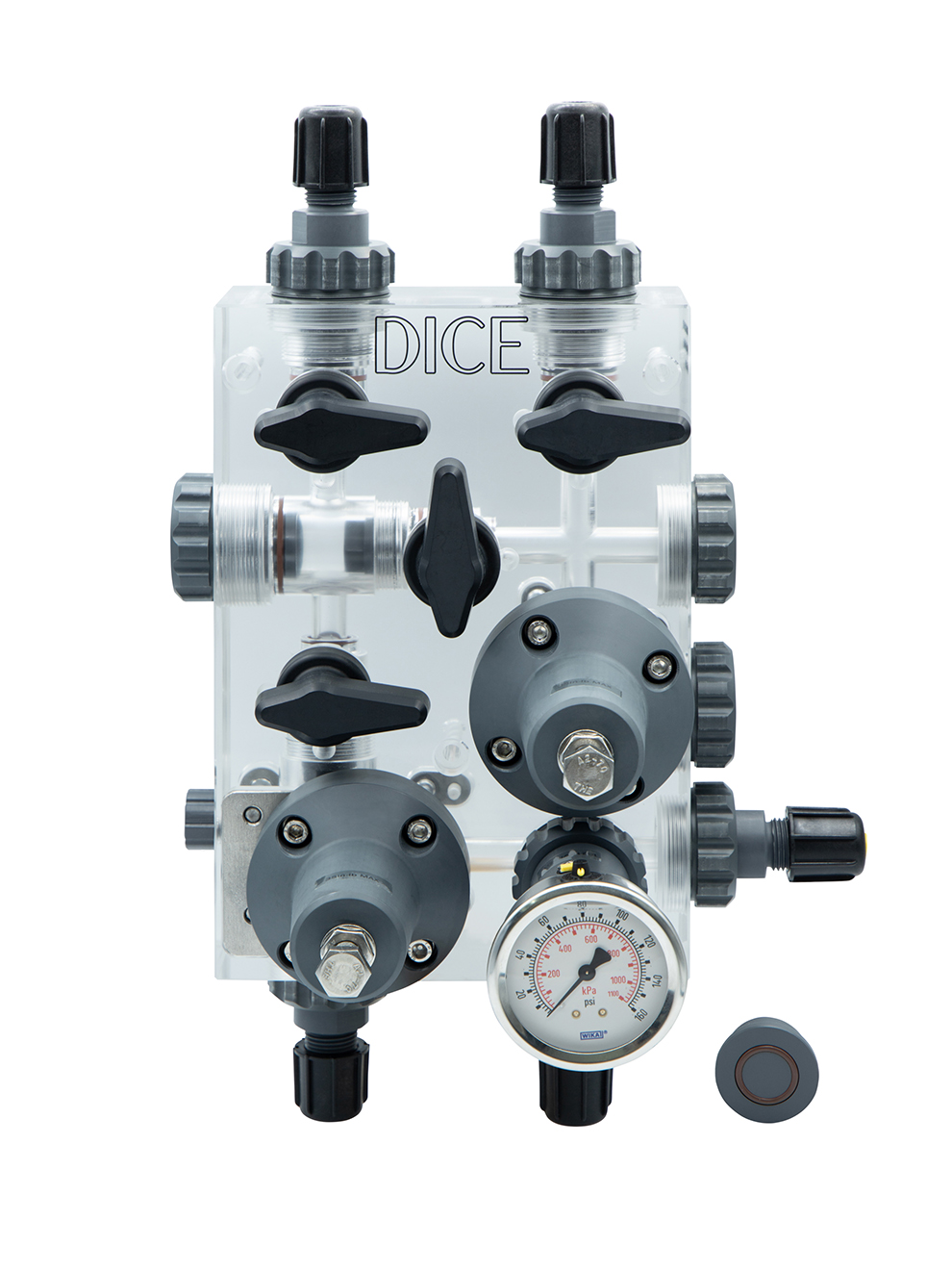

The included DICE Dosing Module DM 1/2in features extensive integrated components including inlet/outlet ball valves, calibration column, drainage valve, auxiliary ports for pulsation dampeners/dilution water/secondary pumps, an adjustable back pressure valve, adjustable pressure relief valve, pressure gauge with isolator, and bleed valve. This module  is designed for suction lift installations and flooded suction configurations by connecting the pump's discharge directly back to the chemical tank. Their compact, rigid design allows easy installation on new or existing systems using just 3 supporting bolts and 4 connections. A variety of construction materials are offered for high chemical resistance, such as Acrylic, PVC, PVDF, FKM/Viton, EPDM, PE and PFA(CVPC available upon request). Reduced connections, vibrations, and integrated hydrotesting allow the DICE Dosing Module to provide a reliable, low-maintenance solution with a much smaller footprint than traditional configurations. All of these components are consolidated into one machined block, greatly reducing potential leak points in comparison with conventional piped systems.

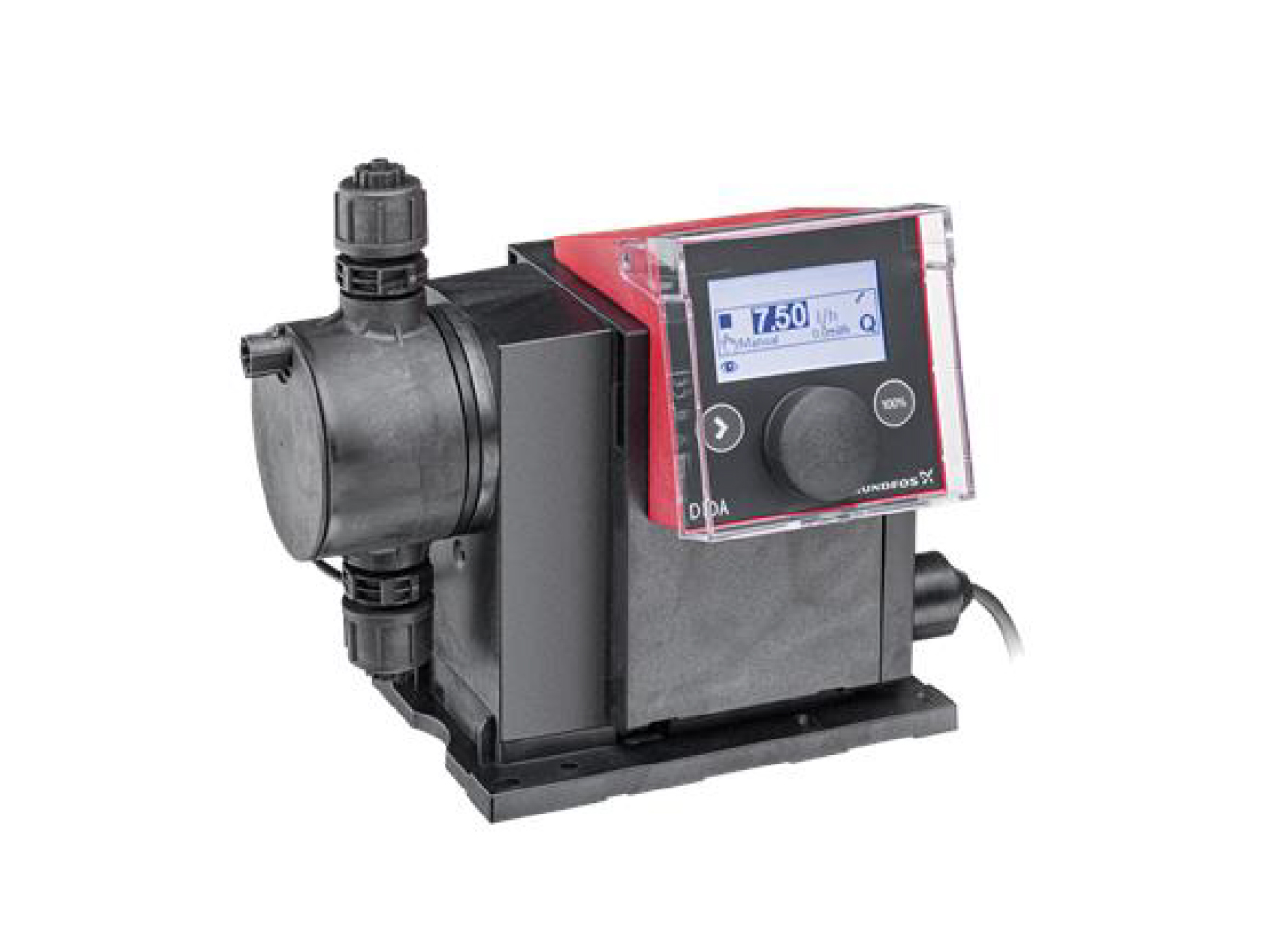

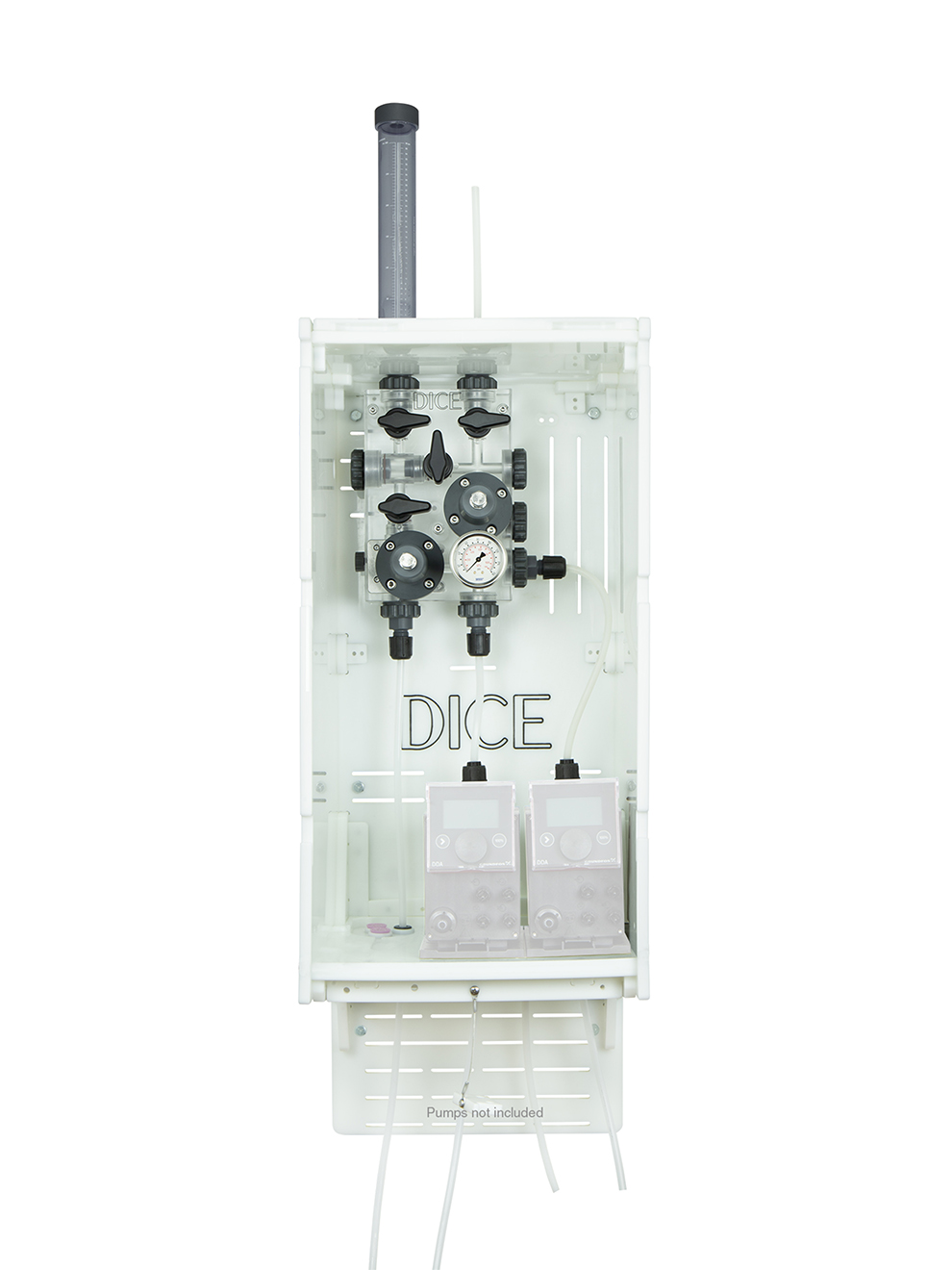

A calibration column comes standard with the unit, to allow calibration at regular intervals and a visual confirmation of the chemical volume added to the process. Each system also includes a DICE Wall Mount Panel, with optional shelf and splash guard enclosure that can house up to two pumps for duplex configurations. This system is available for factory assembly with Grundfos DDA Series Digital Dosing Pumps, additional brands available upon request. Contact a Pump World engineer for questions on configuration-specific kit inclusions, and additional accessories.
