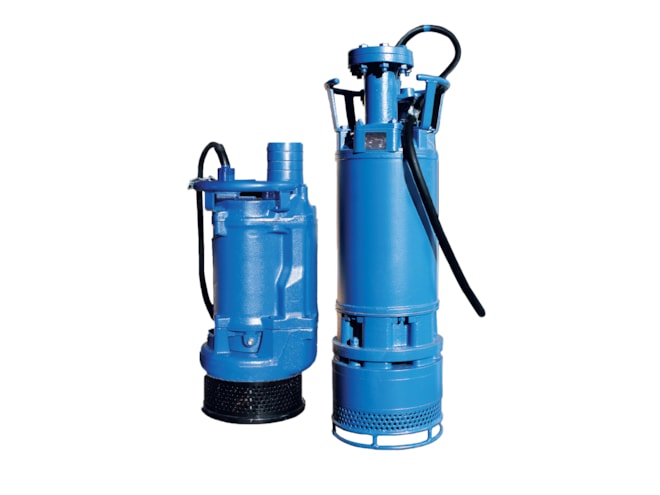

Hevvy/Toyo DXL Series Dewatering Pump

Dewatering pump for liquids with up to 5% solids. 5 to 150 HP, low and high head configurations. 2 to 6in discharge diameter. High Chrome impeller available with high head models.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $2,566.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Hevvy/Toyo DXL Series Dewatering Pump Datasheet Hevvy/Toyo DXL Series Dewatering Pump Curves
Highlights...

Features

  • For dewatering with up to 5% solids
  • Horsepower: 5 to 150 HP
  • Speed: 3450 RPM
  • Temperature rating: 40°C (105°F) max
  • Discharge diameter(s): 2 to 6in
  • Connection type(s):
    • LH: Hose coupling (MNPT available in 10 to 15 HP)
    • HH: FNPT
  • Impeller diameter(s): 5.9 to 13in
    • LH: Cast iron
    • HH: High Chrome
  • Flow rate: 53 to 528gpm
  • Max solid size: 0.3 to 4in
  • Integrated cooling jacket
  • Thermal protection (high head models)
  • Silicon Carbide mechanical seal
  • Voltages: 460, 460/575 V
  • Cable included

The Hevvy/Toyo DXL Series Dewatering Pump is a versatile system designed to extract dirty water with up to 5% solids. Operation of these pumps can occur in levels as low as 6in. The DXL Series comes in low and high head configurations. Low head models are offered in 5 to 20 HP, with up to a 180ft rated head. High head configurations come in 15 to 150 HP, with up to a 525ft rated head. Discharge port sizes are available in 2, 3, 4, and 6in diameters. Low head DXL units are equipped with a durable cast iron impeller, whereas high heads feature a High Chrome impeller for additional resistance to wear in the presence of abrasive materials. Thermal protection is also included with high head pumps. All models come with an inbuilt cooling jacket and are rated for 460 V operation, with 575 V available with high heads.
