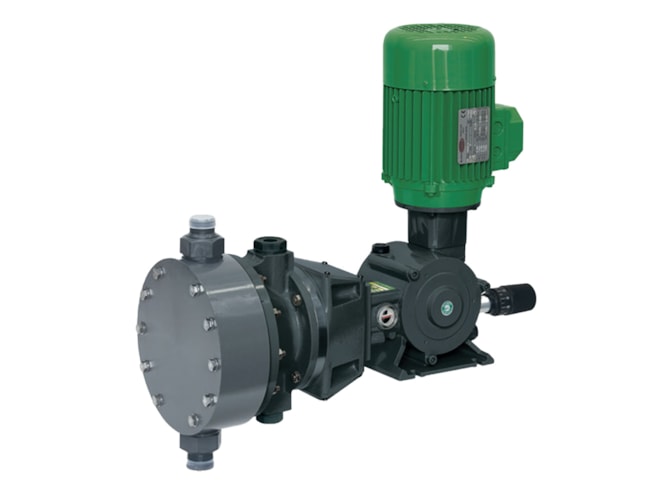

FPZ Model B Series High Pressure Hydraulic Diaphragm Metering Pump

Hydraulic diaphragm pump for severe duty applications including hazardous materials.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $2,179.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 4 pole electric motor
  • Simplex and multi-head versions available
  • NPT valve connections standard
  • PTFE coated diaphragm
  • S.S. 316L Head and Ball
  • Cataphoresis painting for gearbox
  • Endless screw worm gear box

The FPZ Model B Series High Pressure Pressure Hydraulic Diaphragm is a hydraulic diaphragm pump with 4 pole electric motor. It has standard NPT valve connections and a cataphoresis painted gear box. The diaphragm itself is PTFE coated. The endless screw worm gear box is supported by bearings and fully lubricated in an oil bath.

The standard 3 phase voltages are 208-230V/460V-60Hz. The standard 1 phase voltage 115/208-230V-60Hz. Motors are available to meet a wide range of alternative specifications including: IEEE841, IEEE45, Explosion proof; different voltages, frequencies, higher insulation standards and more.

Stroke adjustment can be made with the pump at rest or in operation,  run manually or automatically with an actuator driven by 4-20mA.

Applications

  • Fertigation
  • Water treatment
  • Paper Industry
  • Chemical Industry
  • Food industry
  • Cooling towers
  • Power Plants
