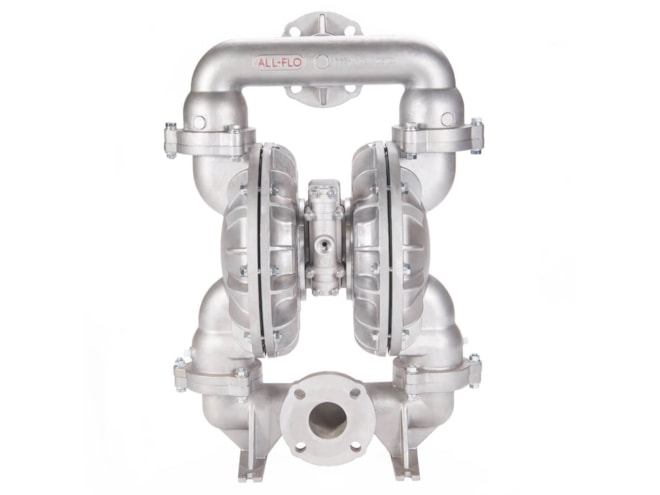

All-Flo A300 Stainless Steel Air-Operated Double-Diaphragm Pump

Name: All-Flo A300 Stainless Steel Air-Operated Double-Diaphragm Pump
Price: 10333.0 USD
Availability: BackOrder

Stainless steel body with 3-inch ANSI/DIN flange.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.

Starting Price: $10,333.00

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Product Manual

Product Specs

Highlights...

By All-Flo
Call for availability

Features

235 GPM max flow rate
3/4in FNPT air inlet
3in liquid inlet and discharge ports
120psi max pressure
7/16in max solids
Max suction life capability:
- 20 ft-H2O dry
- 31 ft-H2O wet

The All-Flo A300 Air-Operated Double-Diaphragm Pump is manufactured from a stainless steel housing, an aluminum air section, and a choice of Santoprene or PTFE diaphragms.

The A300 has a standard configuration, with the ports located at the suction center front/discharge center rear.
