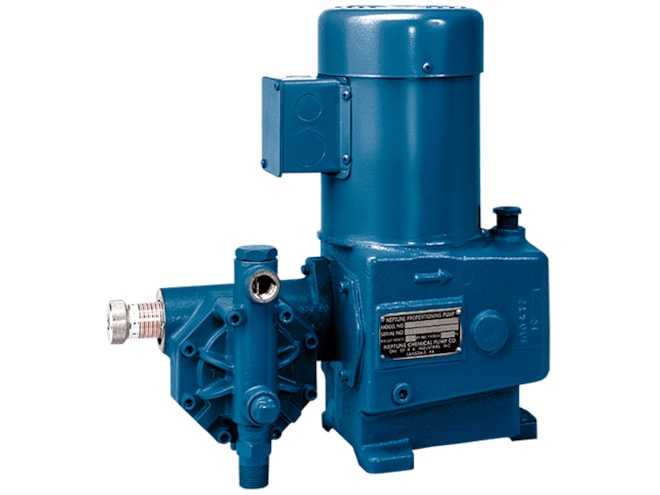

Neptune 500-VS High-Viscosity Chemical Metering Pump

Handles viscous fluids of up to 5,000 cP.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $3,586.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • 2 to 29 GPH capacity
  • 200 to 900 psi max. discharge pressure
  • 37 to 144 SPM
  • 316SS materials of construction with SS trim
  • PTFE diaphragm
  • Large internal porting with a large, single ball, suction check valve

The Neptune 500-VS High-Viscosity Chemical Metering Pump is designed to accurately measure viscous fluids up to 5,000 cP such as polymers and other thick liquids.

The Variable Oil By-pass™ stroke adjustment allows an adjustable time delay between the end of the suction stroke and the beginning of the discharge stroke. This delay permits the ball to seat fully before pumping resumes even in the heaviest liquids, so pumping accuracy remains high.
