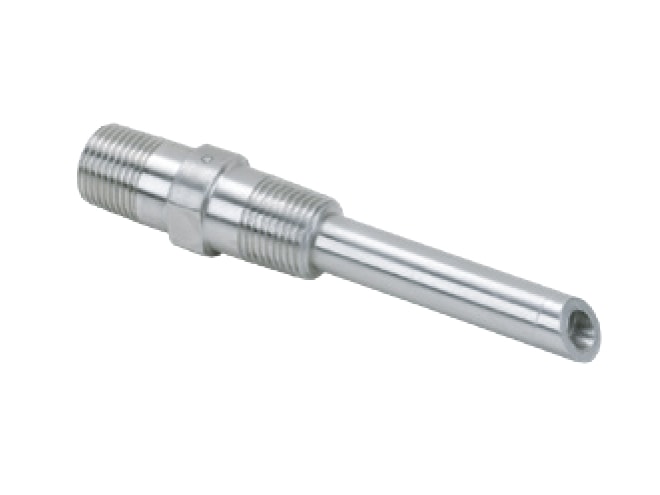

Neptune High-Pressure Injection Quill

Includes spring-loaded check valve.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $207.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 316SS or PVC body material
  • 316SS or Ceramic check material
  • 150 or 3,000 psi max. pressure
  • 100 or 750°F max. temperature
  • 1/2 or 3/4in NPT connection

The Neptune High-Pressure Injection Quill is used to inject chemicals pumped by metering pumps into the turbulent flow zone of high-pressure water or steam lines.

For lines smaller than a 4in diameter, the quill should be trimmed so the chemical is released near the center of the line. Use as-is for lines over a 4in diameter.

The quill should be installed with the "Telltale" V-notch facing upstream so flow strikes are angled with the face at the end of the quill, for the most rapid dispersal of the injected chemical.

For ease of maintenance, it is recommended to install an isolation valve, rated above line operating pressure, immediately behind the quill.
