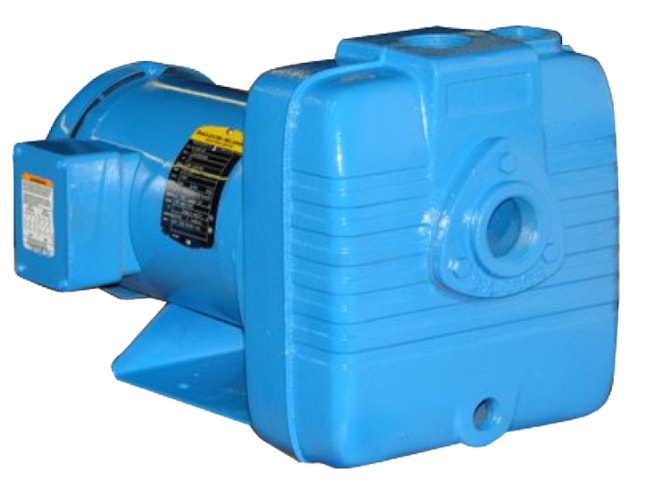

Power-Flo Technologies PF Series Self-Priming Centrifugal Pump

1.5 to 15 HP motor options.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $4,053.15
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Power-Flo Technologies PF Series Self-Priming Centrifugal Pump datasheet - 1.5 to 3 HP motor Power-Flo Technologies PF Series Self-Priming Centrifugal Pump datasheet - 5 HP motor Power-Flo Technologies PF Series Self-Priming Centrifugal Pump datasheet - 7.5 HP motor Power-Flo Technologies PF Series Self-Priming Centrifugal Pump datasheet - 10 HP motor Power-Flo Technologies PF Series Self-Priming Centrifugal Pump datasheet - 15 HP motor

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • 95 to 400 GPM max. flow rate
  • 87 to 190ft shut off
  • ODP or IEEE-45 TEFC motor
  • Cast iron or bronze fitted volute and impeller material
  • 3/8 to 3/4in spherical solids
  • Steel pedestal or base mount type
  • Shaft material:
    • 416 stainless steel (1.5 to 3 HP options)
    • 1035 cold rolled steel with bronze sleeve (5 to 15 HP options)
  • Neoprene valve flap, steel weight

The Power-Flo Technologies PF Series Self-Priming Centrifugal Pump is designed for marine, municipal, and industrial applications. The pump includes a 1 or 3 phase, open, drip-proof motor with squirrel cage induction. Motors are ODP as standard, with an IEEE-45 TEFC option. The volute and impeller are cast iron as standard, with a bronze-fitted option for both. The impeller is dynamically-balanced, open, and trash type.

ISNY Abrasive Cyclone Separator
ISNY Abrasive Cyclone Separator

Uses rotational effects and gravity rather than filters to remove particulates from fluids.

$500.00

Manufacturer Stock

Part Number Price Available
PF10CCE3
Show Configuration
$4,736.74 9 in stock
PF20CCE3
Show Configuration
$7,499.41 9 in stock
PF15CCE3
Show Configuration
$6,403.34 5 in stock
PF15CCE3-BF
Show Configuration
$7,089.77 5 in stock
PF20CCE3-BF
Show Configuration
$7,200.75 5 in stock
PF25CCE3
Show Configuration
$7,499.41 4 in stock
PF4CCE3
Show Configuration
$3,931.37 3 in stock
PF5CCE3
Show Configuration
$4,307.23 3 in stock
PF10CCE3-BF
Show Configuration
$4,046.83 2 in stock
PF15CCE3-T
Show Configuration
$8,383.05 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
