LMI Pumps Liquitron DP5000 Series pH Controller

Dual-channel pH controller providing relay or proportional pulse outputs to drive chemical metering pumps.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $2,383.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
LMI Pumps Liquitron DP5000 Series pH Controller Datasheet LMI Pumps Liquitron DP5000 Series pH Controller Manual
Highlights...

Features

  • 0 to 14 pH scale
    • 0.01 resolution
  • Temperature reading
  • High and low set points
  • Proportional pulse or relay outputs standard
  • Limit timer: adjustable 0 to 11 hours
  • pH programmable response delay
  • Single and dual-point calibration
  • 4-20 mA output optional
  • Backlit LCD display

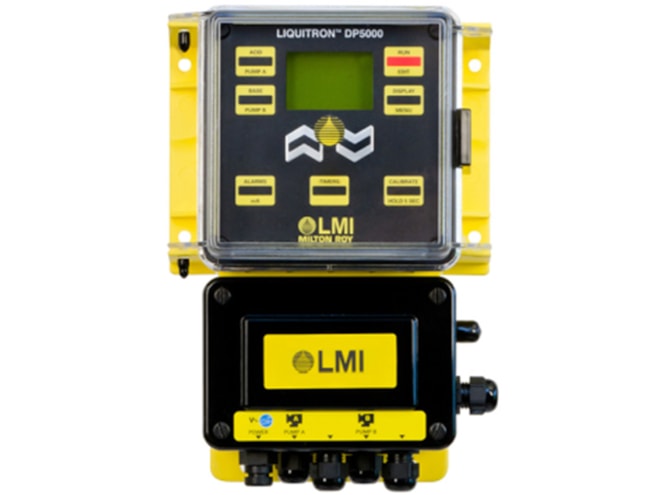

The LMI Pumps Liquitron DP5000 Series pH controller is a dual-channel pH controller providing either relay or proportional pulse outputs to drive chemical metering pumps. The backlit display provides constant information regarding controller conditions with easy-to-use navigation.

The Liquitron DP5000 Series features high and low alarm points, delay and limit timers, and other programmable features that make the DP5000 an adaptive pH controller for your chemical feed system.

Applications:

  • Cooling Water
  • Waste Neutralization
  • Process Control
  • Environmental
  • Metal Finishing
LMI Pumps Liquitron pH and ORP probe
LMI Pumps Liquitron pH and ORP probe

Flat surface combination electrode, in-line or submersible, PVC body.

Starting at $563.00

This product can be used in the following applications:

Part Number Price Available
DP5000-1A-0
Show Configuration
$2,383.00 5 in stock
DP5000-1B-0
Show Configuration
$2,383.00 2 in stock
DP5000-1C-0
Show Configuration
$2,383.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2 to 3 weeks". Click here to select options
