LMI Pumps EXCEL XRE Chemical Metering Pump

16 to 53 GPH pump with efficient mechanically actuated diaphragms for maximum evacuation on every stroke.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $4,766.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
LMI Pumps EXCEL XRE Chemical Metering Pump Manual LMI Pumps EXCEL XRE Chemical Metering Pump Manual (Modbus) LMI Pumps EXCEL XRE Chemical Metering Pump Manual (Profibus) LMI Pumps EXCEL XRE Chemical Metering Pump Manual (Enhanced)
Product Specs
Highlights...

Features

  • Models available:
    • 16 GPH; 150psi
    • 28 GPH; 100psi
    • 53 GPH; 60psi
  • Manual, Enhanced, and Enhanced with Communications models
  • Profibus DP or Modbus RTU protocols available with communications models
  • Drive system achieves +/-1% accuracy and 1000:1 turn-down
  • Mechanically actuated diaphragms
  • NEMA 4X/IP 65 housing and protective cover
  • ETL, NSF 61, NSF 372, CE Certifications

The LMI Pumps EXCEL XRE chemical metering pump is a mechanically actuated diaphragm pump driven by a variable speed stepper motor to provide accurate and reliable performance. The proven technology is easy to maintain and will provide years of maximum up-time service.

The EXCEL XRE is available in three control configurations, Manual, Enhanced, and Communications. The Manual model has two digital inputs, the Enhanced model provides a full range of capabilities, and the Communications model offers Profibus DP or Modbus RTU communication protocols for 2-way communication.

Applications

  • Water treatment
  • Wastewater treatment
  • General industry
  • Agricultural
  • Chemical
  • Oil and gas
  • Power generation
  • Pulp and paper
  • Textiles

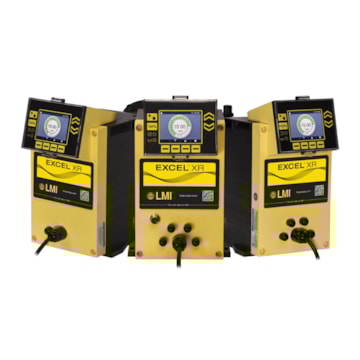

LMI Pumps EXCEL XRE Pump Drive Assembly
LMI Pumps EXCEL XRE Pump Drive Assembly

Replacement drive end for EXCEL XRE Chemical Metering Pumps, output up to 53 GPH/ 60psi. Manual and Enhanced control models with Modbus and Profibus protocols available.

Some Models in Stock
Starting at $4,428.00
LMI Pumps EXCEL XRD / XRE Liquid End Assembly
LMI Pumps EXCEL XRD / XRE Liquid End Assembly

Replacement liquid end compatible with the EXCEL XRE and XRD Chemical Metering Pump. Material configurations for slurry and high viscosity applications available.

Some Models in Stock
Starting at $338.00
LMI Pumps EXCEL XR Series Liquid End RPM Kit
LMI Pumps EXCEL XR Series Liquid End RPM Kit

Repair and maintenance kit for EXCEL XR Series liquid end assemblies.

Some Models in Stock
Starting at $437.00

This product can be used in the following applications:

Part Number Price Available
XRE921A74TCA7PN
Show Configuration
$6,173.00 4 in stock
XRE921A74ATA7PN
Show Configuration
$6,158.00 2 in stock
XRE941A76ACN7NN
Show Configuration
$7,504.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2 to 3 weeks". Click here to select options
