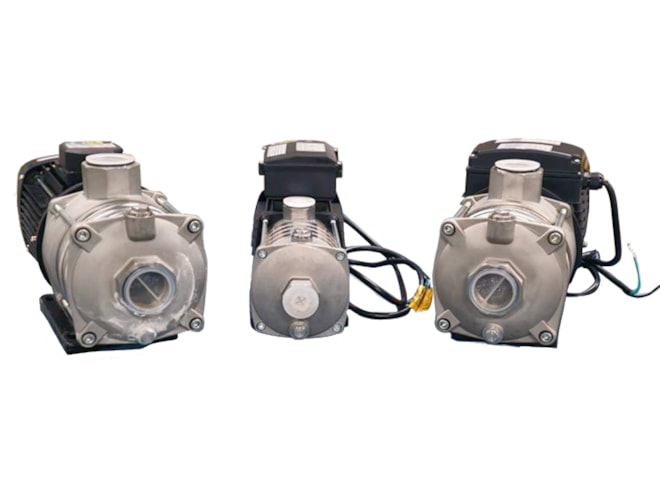

WDM Pumps VHSE Horizontal Multistage Booster Pump

304 stainless steel construction, 158°F liquid temperature.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $381.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
WDM Pumps VHSE 2 6-13-1-HF Horizontal Multistage Booster Pump Datasheet WDM Pumps VHSE 8 3-40 Horizontal Multistage Booster Pump Datasheet WDM Pumps VHSE 2 6-13-1 Horizontal Multistage Booster Pump Datasheet
Highlights...

Features

  • Motor options:
    • 1.3 HP, 115-230V, 1 phase, 6 stages
    • 3 HP, 230V, 1 phase, 3 stages
    • 3 HP, 230-460V, 3 phase, 3 stages
    • 4 HP, 230-460V, 3 phase, 3 stages
  • Single pump flows from 5 GPM to 60 GPM
  • Heads to 250ft (108 PSI of boost)
  • Municipal booster service from 1 to 50 homes
  • Commercial booster service to 750 fixture units
  • Seal:
    • Cartridge type, single mechanical
    • Carbon/ceramic/Buna-N

The WDM Pumps VHSE Horizontal Multistage Booster Pump is composed of stainless steel, and is designed for municipal, commercial, and industrial applications. The pump is optimized for pressure boosting in water systems utilizing variable frequency drives. The motor is composed of Class F insulation, TEFC, premium efficient, and the three phase motors are inverter duty. The pump includes dynamically-balanced, 304 stainless steel impellers, and is close-coupled with a cast iron base.
